2.0mm double row straight right angle ejector header shroud connector

2.0mm double row straight right angle ejector header shroud connector

Product details
Pitch: 2.00mm
Gender: Header
Number of contacts: 06-70 pin
Mount type: Through hole
Number of Rows: Dual row
Elevated: No
Orientation: Right angle /straight
Square Pin Diameter: 0.50mm
Insulator colour: Black

Current Rating: 2 Amp
Insulator Resistance: 1000 MΩ min
Contact Resistance: 20 MΩ max
Dielectric Withstanding: AC 500V
Operating Temp.: -40°C to +105°C
Contact Material: Copper Alloy

Soldering Process:
PA6T(Standard)
IR Reflow: 260°C for 10 seconds
Wave: 230°C for 5-10 seconds
Manual Solder: 350°C for 3-5 seconds
PBT(OPTION)
Manual Solder: 350°C for 3-5 seconds
(Not suitable for HI-TEMP process)
WAVE:230°C for 5-10 seconds
PA9T/LCP(Option)
IR Reflow: 260°C for 10 seconds
Wave: 250°C for 5-10 seconds
Manual Solder: 350°C for 3-5 seconds

2.0mm double row straight right angle ejector header shroud connector

Drawing for reference

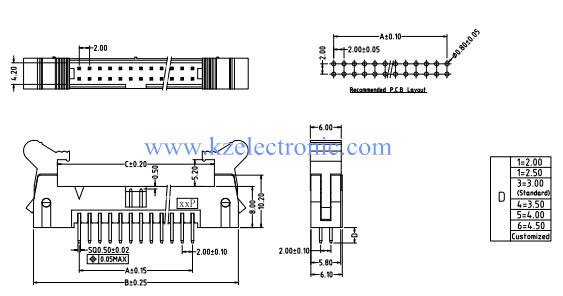

Straight shrouded header ejector header

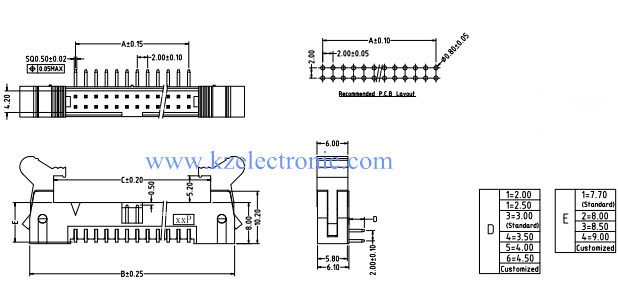

Right angle shrouded header ejector header

If you have any requirement, please contact us.

2.0mm double row straight right angle ejector header shroud connector Images
